38×38×25mm fiberglass platform frp plastic grid grating
US $8.00-$30.00 / m²
Delivery time:
| Quantity(m²) | 1 – 200 | >200 |
| Est. Time(days) | 2 | To be negotiated |
Product description

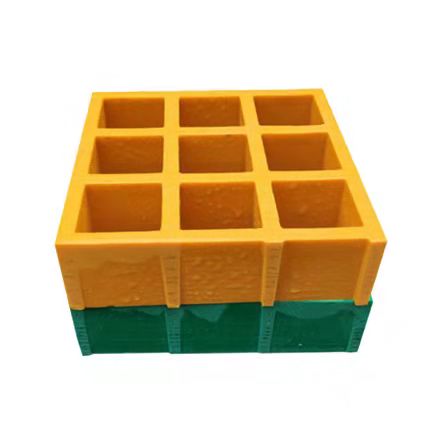

FRP Molded Grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold. It provides properties of light weight, high strength, corrosion resistance, fire resistance and anti-skid. FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.
FRP grating are designed with a high safety factor and are manufactured according to the DIN 24537-3 standard. Our gratings are manufactured in a wide range of sizes in order to guarantee an immediate solution to various design problems and are produced in monolithic panels that are easy and fast to install.
Fiber glass grating producing process such as post applied grit could be bonded after as a secondary operation.This continuous process produces an integral, one piece panel,Frp grating offers excellent corrosion resistance as well as bi-directional strength.

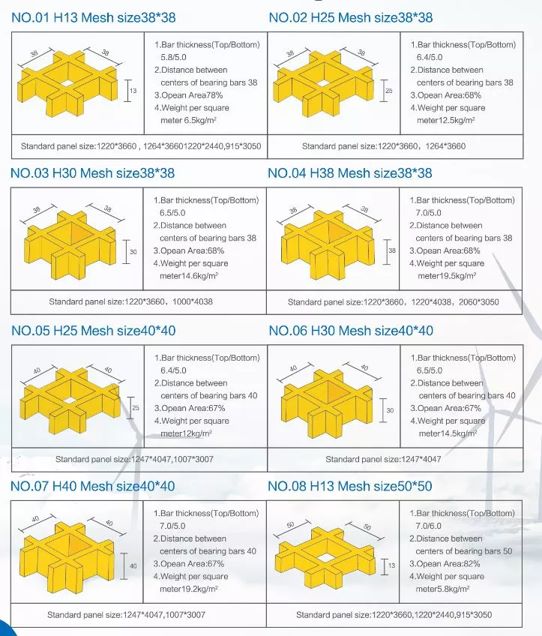

Specificaton of frp grating
Specification(mm) | Panel size(mm) | Weight(kg) | Customize |
38*38*25 | 1220*3660 | 54 | yes |
38*38*30 | 1220*3660 | 70 | |
38*38*38 | 1220*3660 1000*4007 | 88 81 | |
50*50*50 | 1220*3660 | 98 | |
19*19*38*38*30 | 1075*3626 | 72 | |
38*38*65 | 1030*4040 | 141 | |
40*40*40 | 1010*4040 | 81 | |
19*19*38*38*38 | 1220*3660 | 92 | |
25*25*50*50*30 | 1220*3660 | 62 |
Application
FRP grating is widely used in the fields of petrochemical industry,textile printing and dyeing,food processing, electronics
industry,pharmaceutical manufacturing, metal smelting,sewage treatment,transportation,water plant breeding,pulp and
paper,shipbuilding,civil architecture etc.
The concrete uses include operating platform,overhauling walkways, driling platform,terrace,stair steps,equipment aisle,trench over,boat deck,fence etc.
